(docker) oracle xe 18c 설치 및 sqlplus 접속하기

docker 로 oracle db 설치해본다. 정확히는 oracle xe 18c 를 mac 에서 설치한 기록을 남긴다. 오라클에서도 docker image 관련 github 사이트를 제공하고 있다.

oracle/docker-images

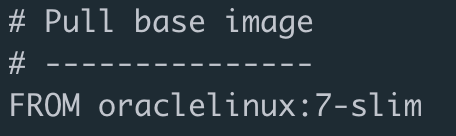

내가 설치하려는건, oracle xe 18c 이며, 해당 Dockerfile 을 살펴보면,  oracle xe 설치파일이 필요하고, 그 이후에 docker build 명령어로 이미지를 빌드하면 된다. 설치파일은 당연히 oraclelinux 이미지 기반으로 설치되니, linux 버전으로 받으면 된다.

(https://github.com/oracle/docker-images/blob/master/OracleDatabase/SingleInstance/dockerfiles/18.4.0/Dockerfile.xe)

# REQUIRED FILES TO BUILD THIS IMAGE
# ----------------------------------
# (1) oracle-database-xe-18c-1.0-1.x86_64.rpm
#     Download Oracle Database Express Edition (XE) Release 18.4.0.0.0 (18c) for Linux x64
#     from https://www.oracle.com/technetwork/database/database-technologies/express-edition/downloads/index.html
#
# HOW TO BUILD THIS IMAGE
# -----------------------
# Put the downloaded file in the same directory as this Dockerfile
# Run:
#      $ docker build -t oracle/database:18.4.0-xe -f Dockerfile.xe .

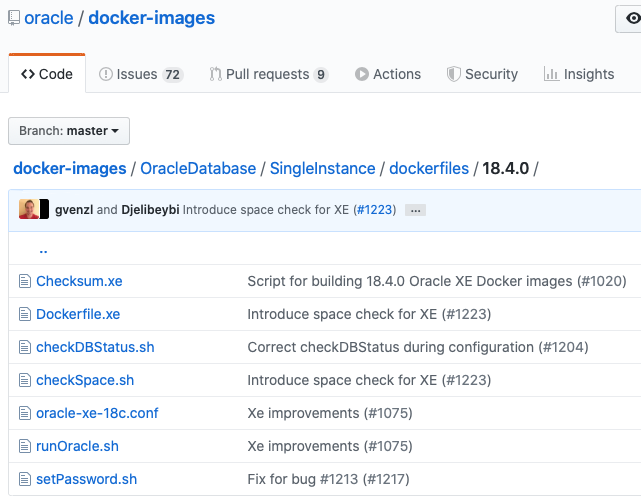

설치를 하기에 앞서, git clone 해서 아래 폴더에 있는 파일들만 특정 로컬폴더로 옮긴다.



오라클 XE 18c 버전을 다운받아야 한다.  오라클 xe 다운로드 하러 가서 다운받는데, dockerfile 의 정보를 확인후 맞는 버전을 받도록 한다.

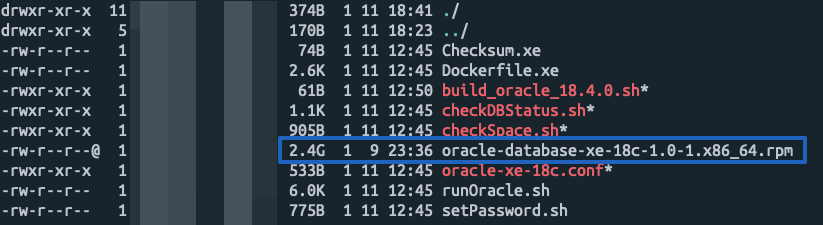

그 로컬 폴더에 다운받은 rpm 설치파일을 같이 넣어둔다.

반응형

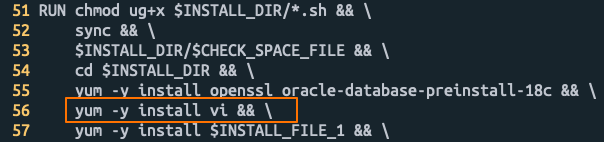

해당 폴더에서 아래 명령어 수행전에 Dockerfile 을 하나 수정한다. vi 가 없어서 sqlplus 사용하기가 수월치않으니, vi 추가한다.



Dockfile 빌드를 시작한다.

> docker build -t oracle/database:18.4.0-xe -f Dockerfile.xe .
...(중략)...
Complete!
Loaded plugins: ovl
Examining oracle-database-xe-18c-1.0-1.x86_64.rpm: oracle-database-xe-18c-1.0-1.x86_64
Marking oracle-database-xe-18c-1.0-1.x86_64.rpm to be installed
Resolving Dependencies
--> Running transaction check
---> Package oracle-database-xe-18c.x86_64 0:1.0-1 will be installed
--> Processing Dependency: file for package: oracle-database-xe-18c-1.0-1.x86_64
--> Running transaction check
---> Package file.x86_64 0:5.11-35.el7 will be installed
--> Finished Dependency Resolution

Dependencies Resolved

================================================================================
 Package          Arch   Version     Repository                            Size
================================================================================
Installing:
 oracle-database-xe-18c
                  x86_64 1.0-1       /oracle-database-xe-18c-1.0-1.x86_64 5.2 G
Installing for dependencies:
 file             x86_64 5.11-35.el7 ol7_latest                            56 k

Transaction Summary
================================================================================
Install  1 Package (+1 Dependent package)

Total size: 5.2 G
Total download size: 56 k
Installed size: 5.2 G
Downloading packages:
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : file-5.11-35.el7.x86_64                                      1/2
  Installing : oracle-database-xe-18c-1.0-1.x86_64                          2/2
[INFO] Executing post installation scripts...
[INFO] Oracle home installed successfully and ready to be configured.
To configure Oracle Database XE, optionally modify the parameters in '/etc/sysconfig/oracle-xe-18c.conf' and then execute '/etc/init.d/oracle-xe-18c configure' as root.
  Verifying  : oracle-database-xe-18c-1.0-1.x86_64                          1/2
  Verifying  : file-5.11-35.el7.x86_64                                      2/2

Installed:
  oracle-database-xe-18c.x86_64 0:1.0-1

Dependency Installed:
  file.x86_64 0:5.11-35.el7

Complete!
Removing intermediate container fdf2fca381ba
 ---> 9c7070463b09
Step 7/10 : VOLUME ["$ORACLE_BASE/oradata"]
 ---> Running in f14a76837075
Removing intermediate container f14a76837075
 ---> abfc276aed8a
Step 8/10 : EXPOSE 1521 8080 5500
 ---> Running in ef4800a5e272
Removing intermediate container ef4800a5e272
 ---> a1f90966ec42
Step 9/10 : HEALTHCHECK --interval=1m --start-period=5m    CMD "$ORACLE_BASE/$CHECK_DB_FILE" >/dev/null || exit 1
 ---> Running in d8d39ac1b95d
Removing intermediate container d8d39ac1b95d
 ---> 208d1346c5f9
Step 10/10 : CMD exec $ORACLE_BASE/$RUN_FILE
 ---> Running in 1928578edfcf
Removing intermediate container 1928578edfcf
 ---> 3802f3e993c6
Successfully built 3802f3e993c6
Successfully tagged oracle/database:18.4.0-xe



설치가 끝나면 docker image 확인해본다.



github 사이트에서 18c 버전의 docker run 명령어 설명을 볼수 있다. 최초 run 때만 좀 걸리고, 나중엔 그렇게 오래걸리지 않는다.(https://github.com/oracle/docker-images/tree/master/OracleDatabase/SingleInstance#running-oracle-database-18c-express-edition-in-a-docker-container)

± % docker run --name my-oracle-xe \
	-p 1521:1521 -p 5500:5500 \
	-e ORACLE_PWD=1 \
	-v $PWD/mount/data:/opt/oracle/oradata \
	oracle/database:18.4.0-xe

ORACLE PASSWORD FOR SYS AND SYSTEM: 1
Specify a password to be used for database accounts. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9]. Note that the same password will be used for SYS, SYSTEM and PDBADMIN accounts:
Confirm the password:
Configuring Oracle Listener.
Listener configuration succeeded.
Configuring Oracle Database XE.
Enter SYS user password:
***
Enter SYSTEM user password:
*
Enter PDBADMIN User Password:

Prepare for db operation
7% complete
Copying database files
29% complete
Creating and starting Oracle instance
30% complete
31% complete
34% complete
38% complete
41% complete
43% complete
Completing Database Creation
47% complete
50% complete
Creating Pluggable Databases
54% complete
71% complete
Executing Post Configuration Actions
93% complete
Running Custom Scripts
100% complete
Database creation complete. For details check the logfiles at:
 /opt/oracle/cfgtoollogs/dbca/XE.
Database Information:
Global Database Name:XE
System Identifier(SID):XE
Look at the log file "/opt/oracle/cfgtoollogs/dbca/XE/XE.log" for further details.

Connect to Oracle Database using one of the connect strings:
     Pluggable database: 8a9d4e36b6e4/XEPDB1
     Multitenant container database: 8a9d4e36b6e4
Use https://localhost:5500/em to access Oracle Enterprise Manager for Oracle Database XE
The Oracle base remains unchanged with value /opt/oracle
#########################
DATABASE IS READY TO USE!
#########################
The following output is now a tail of the alert.log:
Pluggable database XEPDB1 opened read write
Completed: alter pluggable database XEPDB1 open
2020-01-11T09:36:37.546773+00:00
XEPDB1(3):CREATE SMALLFILE TABLESPACE "USERS" LOGGING  DATAFILE  '/opt/oracle/oradata/XE/XEPDB1/users01.dbf' SIZE 5M REUSE AUTOEXTEND ON NEXT  1280K MAXSIZE UNLIMITED  EXTENT MANAGEMENT LOCAL  SEGMENT SPACE MANAGEMENT  AUTO
XEPDB1(3):Completed: CREATE SMALLFILE TABLESPACE "USERS" LOGGING  DATAFILE  '/opt/oracle/oradata/XE/XEPDB1/users01.dbf' SIZE 5M REUSE AUTOEXTEND ON NEXT  1280K MAXSIZE UNLIMITED  EXTENT MANAGEMENT LOCAL  SEGMENT SPACE MANAGEMENT  AUTO
XEPDB1(3):ALTER DATABASE DEFAULT TABLESPACE "USERS"
XEPDB1(3):Completed: ALTER DATABASE DEFAULT TABLESPACE "USERS"
2020-01-11T09:36:39.435482+00:00
ALTER PLUGGABLE DATABASE XEPDB1 SAVE STATE
Completed: ALTER PLUGGABLE DATABASE XEPDB1 SAVE STATE
2020-01-11T09:37:41.995856+00:00
Warning: VKTM detected a time stall.
Time drifts can result in unexpected behavior such as time-outs.
Please see the VKTM trace file for more details:
/opt/oracle/diag/rdbms/xe/XE/trace/XE_vktm_2280.trc
2020-01-11T09:55:29.794242+00:00
XEPDB1(3):Resize operation completed for file# 10, old size 368640K, new size 378880K



DB 서버에 sqlplus 로 접속하는 방법은 2가지 이며, 하나는 해당서버에 접속하는 docker exec 이다. (여기서 비번1로 docker run 시에 지정했었음.)

> docker exec -it oracle-1 sqlplus sys/1@//localhost:1521/XE as sysdba





2번째로 가능한 방법은 docker run 으로 별도 container 에서 접속하는건데, 이걸하려면 docker network 설정을 추가해야 한다.

> docker network create oracle-xe-net



처음 만들었던 docker run 에도 --network 설정을 추가한다.

docker run --rm --name my-oracle-xe \
	--network oracle-xe-net \
	-p 1521:1521 -p 5500:5500 \
	-e ORACLE_PWD=1 \
	-v $PWD/mount/data:/opt/oracle/oradata \
	oracle/database:18.4.0-xe



이제 별도 컨테이너에서 sqlplus 로 접속해보자.

> docker run --rm -ti --network oracle-xe-net \
	oracle/database:18.4.0-xe \
	sqlplus sys/1@//my-oracle-xe:1521/XE as sysdba



tnsnames.ora 파일은 아래 위치에 있음.

vi /opt/oracle/product/18c/dbhomeXE/network/admin/tnsnames.ora

XE =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = XE)
    )
  )

LISTENER_XE =
  (ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))

XEPDB1 =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = XEPDB1)
    )
  )

EXTPROC_CONNECTION_DATA =
  (DESCRIPTION =
     (ADDRESS_LIST =
       (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC_FOR_XE))
     )
     (CONNECT_DATA =
       (SID = PLSExtProc)
       (PRESENTATION = RO)
     )
  )
